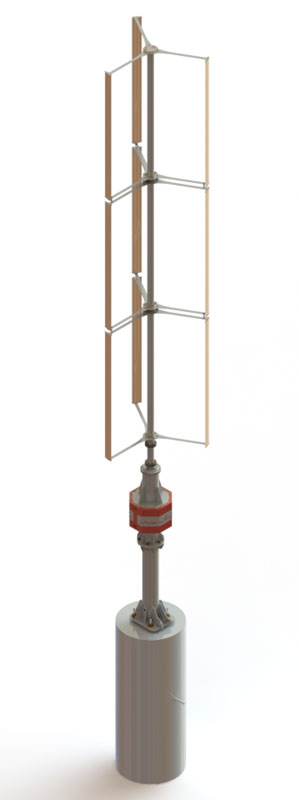

2kW Wind Turbine System

2kW Wind Turbine
Model #WIN80083

Designed for commercial wind turbine installations where total monitoring is required
Available standard as an easy to tilt ground mount or a roof mount stand with legs or ballast.

Our wind turbines can be configured to match any site or wind condition. With our blade designs and sizes, multiple tiers and blade configurations, we can supply you with the proper wind turbine system for your project.

• Rated Maximum Output:
2000 watts

• Annual Output:
4250 kwh @ average 12.5 mph wind speed

• Voltage Output:
240 VAC Split Phase

• Cut In Wind Speed:
8 mph

• Cut Out Wind Speed:
42 mph

• Survival wind Speed:
110 mph

• Wind Blades:
3 blades in two tiers total 9 blades

• Rotor Diameter:
5.2 feet

• Height:
30 feet

• Weight:
975 lbs

• Construction:
All Metal, Special powder coatings

• Braking:
Dynamic Diversion Load and Stop Switch


Royall 2Kw wind turbines are available as single tier wind turbines when used with the optional 6'x6' roof mount, (WIN80087)

A new advanced generator that took years to develop and test. Light weight, high powered, and encased in a rugged housing giving you Low RPM and High Power.

All of our wind turbines can be installed on-grid or off-grid. For an on-grid connection we use Inverters specifically matched to our wind turbine Controller. For off-grid applications we have many options from manufacturers that specialize in off-grid inverters and chargers.

All turbines are designed, tested and fabricated in our facilities in Wisconsin, to exacting standards and the highest in technological advances. This makes our turbines the most desired wind turbines for any wind project in the world.

All turbines carry a 5 year warranty on all parts and electronics. Extended warrantees are available.
